Sunflower Oil Flow Meter DN50: Optimizing Tri-Clamp Sanitary Pipeline Configurations
Quick Answer: A DN50 tri-clamp flow meter handles typical sunflower oil transfer rates from 2 to 40 m3/h with zero dead legs and fast CIP cycles. Coriolis mass flow technology works best because it ignores viscosity swings and gives direct mass output in kg/h. Silver Automation Instruments supplies pre-configured SILVER CMF-DN50 units with ISO 2852 connections that slide straight into new lines or retrofits.
Why DN50 Fits Most Sunflower Oil Transfer Lines
Most small to medium edible oil plants in Southeast Asia and Latin America move sunflower oil from day tanks to filling machines at flow rates between 8 and 25 m3/h. A DN50 line keeps the velocity between 1.2 and 3.8 m/s, which avoids laminar creep and excessive pressure drop. Sunflower oil at 30 deg C shows a viscosity around 38 cP. A smaller DN40 pipe would push velocity above 5 m/s and cause shearing. A larger DN65 pipe often traps residue during cleaning and wastes nitrogen or CIP media. In practice, DN50 balances throughput, cleanability, and installed cost for 1-inch or 2-inch filling nozzle arrays.
Tri-Clamp Connections: The Sanitary Standard for Oil Processing
Tri-clamp fittings per ISO 2852 remove threads and crevices. Operators can strip down a DN50 inline meter in under three minutes without tools. For sunflower oil, even a small thread gap becomes a bacteriological risk once process temperatures drop below 60 deg C. Silver Instruments sanitary Coriolis meters come with standard 316L stainless steel tri-clamp ends, electropolished to Ra 0.6 µm or better. Gaskets are available in EPDM, FKM, or PTFE envelope, all FDA compliant. Because sunflower oil oxidises slowly, the fully swept bore also prevents product hang-up that would discolour later batches.
Avoiding Dead Legs and CIP Pitfalls
Dead legs upstream or downstream of a flow meter are the number one reason for failed swab tests in edible oil plants. With a DN50 tri-clamp Coriolis meter, the tube ID matches the pipe ID within 0.5 mm. The flow path is self-draining when installed vertically. We have seen customers in Vietnam simply connect a hot water CIP loop at 85 deg C for 20 minutes without dismounting the meter. There is no rotor, no gear, and no internal cavity that traps oil. If the line includes check valves or sight glasses, place the flow meter after those components to keep the wetted length contiguous.
Recommended Flow Meter Technology for Sunflower Oil
Electromagnetic flow meters fail because sunflower oil is non-conductive. Turbine meters drift when viscosity changes from cooling or day-to-night temperature swings. Positive displacement meters work but take a heavy CIP cost because small gaps retain oil. A Coriolis mass flow meter gives direct mass (kg/h), density, and temperature with no moving parts in the product stream. Silver Automation Instruments offers the SILVER CMF-DN50 dual-tube Coriolis meter. Its key specifications include a mass flow range of 0 to 50 000 kg/h, accuracy plus/minus 0.2 percent of rate, repeatability 0.05 percent, and a 4-20 mA HART output with optional RS485 Modbus RTU. Wetted parts are 316L stainless steel with sanitary ferrules. The meter handles process temperatures from minus 50 to 150

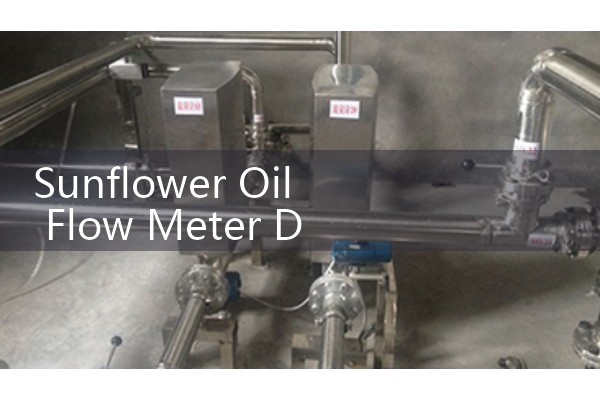

_600x400.jpg)
A Real Example from a Southeast Asian Edible Oil Plant
Last year a contract bottler near Rayong, Thailand, replaced oval gear meters on three sunflower oil filling lines with SILVER CMF-DN50 meters. Their old meters required a manual clean-out every 72 hours because residual oil polymerised on internal gears. The new Coriolis meters run two-week CIP intervals with only a hot rinse. Weight-based filling accuracy improved from plus/minus 12 grams to 3 grams per 1-litre bottle. The plant uses the density output to spot water contamination in the oil tank automatically. After six months, they ordered five more DN50 units for palm oil and coconut oil lines.
Installation Notes for DN50 Coriolis Meters
Most engineers skip this part, but vibration is the main enemy. Use rigid pipe supports within 30 cm of the meter flanges. Although Coriolis meters do not need straight runs for accuracy, we recommend 5D upstream and 3D downstream of clear pipe to reduce external stress on the tubes. Never mount the meter at a low point where CIP fluid can pool back. For horizontal lines, orient the transmitter so condensate cannot drip into the electronics. If the sunflower oil contains fine meal remnants, install a 500-micron strainer 20 pipe diameters upstream. For filling machines with fast start-stop cycles, set the damping to 0.5 seconds to capture peak flow without sensor ringing.
Quick Specs to Send for a Quote
Tell us your operating pressure (bar), normal and maximum temperature (deg C), pipe size (DN), and the flow range you need to cover. Also mention if the line uses steam CIP or chemical wash. Our engineers will match a SILVER CMF-DN50 with the correct wetted material, gasket type, and transmitter housing for your plant.
Frequently Asked Questions
Does a DN50 tri-clamp Coriolis meter need recalibration when switching from sunflower oil to soy bean oil? No. The meter measures mass directly and the calibration factor does not change with product type or viscosity. You only need to perform a zero check with the pipe full of product.
Can a Coriolis meter handle the minor particles sometimes present in crude sunflower oil? Yes, within reason. The dual-tube design has no obstructions. Silty fines up to 200 microns pass through without damage. For crude oil with foots, we recommend a 500-micron pre-filter to protect the meter and downstream filling valves.
What tri-clamp size is standard for a DN50 meter? The most common is 50.5 mm tube OD with a 64 mm clamp flange according to ISO 2852 series. Other regional standards like DIN 32676 series B are available on request.
What type of cleaning can the meter withstand? SILVER CMF meters tolerate hot alkaline CIP at 95 deg C and short-term steam up to 130 deg C. The enclosure is IP67, and the sensor is fully sealed. Do not use caustic concentrations above 5 percent for repeated cycles.
How do I integrate the meter into a Profibus or EtherNet/IP network? The standard electronics come with 4-20 mA, pulse, and Modbus RTU. Profibus PA, EtherNet/IP, or PROFINET are available via an add-on module. Specify the protocol when requesting a quote.
