Fire Pump Water Flow Meter Selection: Finding Approved High-GPM Testing Instruments
Quick Answer: For permanent fire pump test headers above 500 GPM, start with an inline electromagnetic flow meter. For portable checks across multiple fire pumps, use a clamp-on ultrasonic flow meter with a full scale of at least 150 percent of pump rated flow. Always confirm the listing mark required by the local fire authority before you order.
Why a Standard Water Meter Fails on Fire Pump Test Headers
Fire pump flow tests are not the same as municipal water billing. The flow changes fast from zero to over 4000 GPM in a few seconds. Pressure can swing from 4 bar to 14 bar. A standard turbine meter or plastic body meter can fail under these conditions. One fire contractor in Manila replaced three plastic paddle wheel meters on a 2000 GPM test header before switching to a DN200 electromagnetic flow meter. The old meters lost impeller blades during a churn to full flow test.
In practice, fire pump testing needs a meter that handles short bursts, high velocity, and water with scale or sediment. Magnetic flow meters have no moving parts in the flow stream. They do not care if the water is dirty. Clamp-on ultrasonic meters also work well for temporary tests where cutting the pipe is not allowed.
Match the Meter Size to the Pump Curve Not Just the Pipe Diameter
Most engineers start with the pipe diameter. That is a good first step but it is not enough. A DN150 test header can see 1800 GPM on a 1500 GPM pump. A DN100 header on a 750 GPM pump can run at 8 m/s during full flow. Check the flow velocity against the meter specification. For electromagnetic flow meters we recommend keeping normal test flow between 1 m/s and 7 m/s. For ultrasonic clamp-on meters the pipe must be full with no air pockets.
Collect these four numbers before you ask for a fire pump flow meter quote. Pipe size in DN. Pump rated flow in GPM or m3/h. Test header material such as carbon steel or ductile iron. Water source type such as town main, tank, or seawater. If you miss the water source, you may get the wrong liner or electrode material. A fire pump in a coastal plant in Vietnam uses seawater. That job required 316L electrodes and a PTFE liner instead of hard rubber.
Inline Electromagnetic Flow Meters for Permanent Test Headers
An inline electromagnetic flow meter is a strong choice for a permanent fire pump test header. It provides 4-20 mA HART output and a digital display that crews can read during the test. Silver Instruments supplies electromagnetic flow meters from DN15 to DN400 for clean water, raw water, and seawater. Accuracy is 0.5 percent of reading from 0.5 m/s to 10 m/s. The meter has no orifice plate and no moving part to jam.
For a 2500 GPM pump test header, a DN250 electromagnetic flow meter works well. The flow velocity at 2500 GPM is around 3.2 m/s. The pressure drop is almost zero. That matters because you do not want the meter to change the pump test result. In many pump test standards the meter must not reduce the available pressure at the test connection.
Clamp-On Ultrasonic Flow Meters for Multi-Pump Service and Site Checks
Contractors who test fire pumps at multiple sites often prefer a clamp-on ultrasonic flow meter. There is no pipe cutting and no shutdown. The transducer pair clamps on the outside of the test header. Silver Instruments offers clamp-on ultrasonic flow meters that work on carbon steel, stainless steel, and ductile iron pipes from DN25 to DN1200. The meter reads flow through pipe walls with scale up to 3 mm.
A fire pump testing crew in Bangkok used one clamp-on meter to check a 1000 GPM electric pump and a 750 GPM diesel pump in the same afternoon. They moved the transducers in about 20 minutes. That kind of speed is hard to get with inline meters. But the pipe must be full for the read

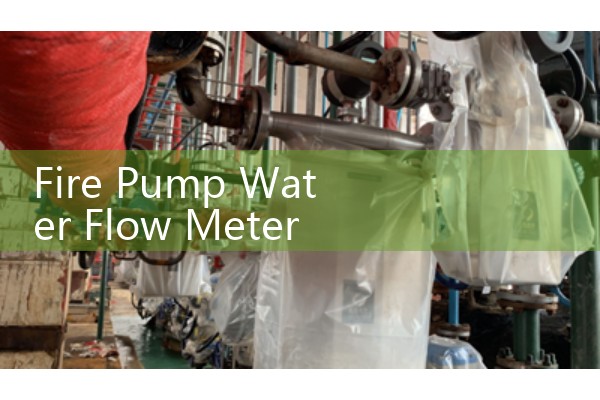

_600x400.jpg)
Approval and Listing Marks That Affect Acceptance
Fire pump systems usually fall under NFPA 20 or local fire codes. Some jurisdictions in Australia, Malaysia, and the Middle East ask for UL listed or FM approved devices on the test header. In other regions the local fire brigade accepts a calibration certificate from an ISO 17025 lab. Do not assume a generic water meter will pass. Ask the authority having jurisdiction for the exact marking before you purchase. Silver Instruments can supply standard industrial flow meters for fire pump testing with 4-20 mA HART, NIST traceable calibration, and material certificates. If the job requires a specific FM or UL mark, tell us in the RFQ.
Common Sizing Examples for Fire Pump Testing
Here are some starting points from customer requests. A 750 GPM diesel pump on a DN150 header fits a DN150 electromagnetic flow meter. A 1500 GPM electric pump on a DN200 header fits a DN200 electromagnetic flow meter. A 3000 GPM pump on a DN300 header fits a DN300 electromagnetic flow meter. These sizes keep velocity between 2 m/s and 5 m/s at rated flow.
Portable ultrasonic meters can handle all these sizes with one kit if the transducer frequency is selected for the pipe wall thickness. For DN50 to DN250 pipes, a 1 MHz transducer set works well. For DN300 and above, a 0.5 MHz transducer set gives better signal through thicker pipe.
What We Need for a Fire Pump Flow Meter Quote
Send us the following details for a direct price. Pipe outer diameter or DN. Pipe material and wall thickness. Pump rated flow in GPM or m3/h. Maximum test flow if it is different from rated. Water type and temperature. The authority approval mark if required. You can reach Silver Automation Instruments by phone or WhatsApp. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. Our website is flow-meter.com.au.
Most engineers skip the approval mark question. Then they order a meter and the fire inspector rejects it. We have seen this on customer sites many times in Southeast Asia and the Middle East. Avoid that delay by confirming the mark before payment.
FAQ
Q: Can I use a clamp-on ultrasonic flow meter for official fire pump testing?
A: Yes in many regions. Check with the local fire authority first. Some authorities accept clamp-on ultrasonic meters with a valid calibration certificate. Others require an inline flow meter with a listed mark.
Q: What is the best flow meter type for a permanent fire pump test header?
A: An inline electromagnetic flow meter is the best starting point for water. It has no moving parts, low pressure drop, and works well for high GPM. Use a PTFE liner for seawater or aggressive water.
Q: How many GPM should the flow meter cover?
A: Select a flow range at least 150 percent of pump rated flow. A 2000 GPM pump needs a meter that reads at least 3000 GPM without losing accuracy.
Q: Do fire pump flow meters need special calibration?
A: Most fire pump test standards require a certificate from an accredited lab. Ask for accuracy better than 1 percent of reading. Silver Instruments supplies electromagnetic flow meters with 0.5 percent accuracy and calibration certificates.
Q: Can Silver Instruments supply flow meters for seawater fire pump testing?
A: Yes. We supply electromagnetic flow meters with 316L electrodes and PTFE liners for seawater, brackish water, and firewater on offshore platforms and coastal plants.
Send us your pipe size, pump flow, water type, and approval mark. We will reply with a direct quote and delivery time. Contact Silver Automation Instruments for fire pump water flow meter selection and approved high GPM testing instruments.
