Fleck Flow Meter Troubleshooting: Fixing Water Softener Regeneration Failures Due to No Signal
Quick Answer: A Fleck flow meter with no signal often fails because of a damaged paddle wheel, a broken Hall effect sensor, a loose cable, or a low 5 VDC supply. Check the pulse output with a DC multimeter first. If the meter is beyond repair, install a pulse output electromagnetic flow meter sized to the pipe and the Fleck controller input.
Why Fleck Flow Meters Stop Sending a Signal
Most Fleck water softener systems use an inline flow meter with a paddle wheel or turbine. The paddle wheel rotates when water passes through the pipe. A Hall effect sensor detects the rotation and sends a pulse train to the Fleck controller. No pulse means no measured flow. The controller then skips regeneration steps. Hard water leaks through to the service line.
Common root causes on customer sites include metal or sand deposits around the paddle wheel, a failed magnet inside the wheel, a broken sensor wire, or corrosion on the connector pins. In Southeast Asia high humidity and salt air make connector corrosion worse. We have seen this failure many times at customer sites in Vietnam and the Philippines.
Step 1: Confirm the Failure Is a Flow Meter Problem
Do not replace the control board first. Check the softener schedule. If the unit backwashes manually but not automatically, the issue is usually the meter signal or the controller program. If the display shows zero flow while water is running, suspect the flow meter or the cable.
Most engineers skip the pulse test and replace the timer. In practice a simple pulse test saves hours.
Step 2: Inspect the Flow Meter Mechanical Parts
Shut off the water supply and depressurize the line. Remove the flow meter from the pipe. Look for sand, rust, iron bacteria, or scale around the paddle wheel. In a water softener the meter often sits before the resin tank. Raw well water carries silt. A paint manufacturer in Southeast Asia had this exact failure last year. The paddle wheel stopped because iron sludge built up inside the meter body.
Clean the meter body with a soft brush and mild acid if scale is heavy. Do not use strong solvents on plastic threads. Spin the paddle wheel with your finger. If the wheel does not spin freely, replace the meter.
Step 3: Test the Pulse Output with a Multimeter
Connect the Fleck flow meter signal wire to a DC multimeter. Set the meter to voltage or frequency mode. Rotate the paddle wheel manually. A working Hall effect sensor produces a square wave pulse, usually 0 to 5 VDC. No change on the multimeter means the sensor or the magnet has failed.
Check the supply voltage first. Most Fleck flow meters need 5 VDC or 12 VDC from the controller. If the supply is missing, trace the controller output. If supply voltage is present but no pulse appears, replace the flow meter.
Step 4: Check Cable Continuity and Connector Corrosion
Unplug the connector and inspect the pins. Green corrosion on brass or copper pins breaks the pulse signal. Salt air in coastal areas like Queensland or the Gulf accelerates connector corrosion. Use contact cleaner if the pins are dull. If the cable jacket is cracked or hard, replace the cable assembly.
Measure continuity from the meter plug to the controller terminal. A broken wire inside the jacket may look fine from outside. Pull gently on each conductor. Good cable should not stretch.
Step 5: Verify the Fleck Controller Input Settings
Some Fleck controllers accept a pulse input with a set K factor. If the K factor is wrong, the controller may read pulses but still not start regeneration correctly. Check the manual for your specific Fleck model, such as the 5800 or 3150 series. Set the pulse per liter or gallon value to match the replacement meter.
Incorrect meter type selection also causes no signal. A reed switch meter and a Hall effect meter do not wire the same way. Confirm the controller input accepts the output type from the meter.
When to Replace Instead of Repair
A cracked plastic body, a seized paddle wheel, or a failed sensor inside a sealed housing is not worth repairing in most cases. Replacement meters are low cost compared to softener downtime. If hard water re
Recommended Silver Instruments Flow Meters for Fleck Water Softener Systems
Silver Automation Instruments supplies pulse output flow meters that work with Fleck controllers. For clean water service lines from DN15 to DN50, choose the Silver Instruments SPW-H paddle wheel flow meter with Hall effect pulse output. The SPW-H handles 0.5 to 10 m/s flow velocity and outputs 0 to 5 VDC pulse. The SPW-H works well for soft water and filtered water lines.

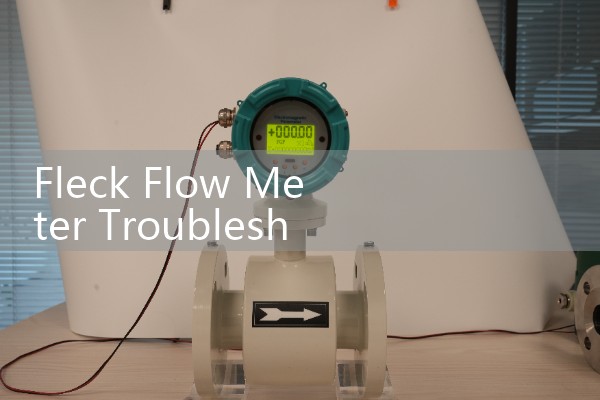

For raw water, bore water, or brine lines with sediment, choose the Silver Instruments SFE-M electromagnetic flow meter. The DN15 to DN80 model with PTFE liner and 316L electrodes sends a 0 to 2 kHz pulse output plus a 4-20 mA signal. Minimum fluid conductivity is 20 µS/cm. No moving parts means no jammed paddle wheel. Use this meter when the Fleck system treats well water with iron or sand.
For larger softener skids or industrial water treatment, the Silver Instruments SFE-M inline electromagnetic flow meter with Modbus RS485, 4-20 mA HART, and pulse output fits DN65 to DN300 pipe. This model suits food and beverage plants, textile washing lines, and commercial building water softeners.
Installation Tips for Replacement Pulse Flow Meters
Install the replacement meter with at least 10 DN straight pipe upstream and 5 DN downstream. This keeps the velocity profile stable. For paddle wheel meters, mount the sensor upright or sideways, not upside down, so air bubbles do not collect near the sensor. For electromagnetic meters, the pipe must stay full at all times. Use a grounding ring if the pipe is plastic.
Set the pulse per liter or pulse per gallon value in the Fleck controller to match the new meter. Test the signal before starting a full regeneration cycle. Open a downstream tap and watch the controller display. The flow reading should increase with the actual flow.
Why This Matters for Water Softener Regeneration
A water softener relies on flow totalization to start backwash, brine draw, slow rinse, and fast rinse. No signal means the Fleck controller does not know water volume. The resin bed exhausts. Hardness ions pass through. In a commercial laundry hard water causes scale on heating elements. In a food plant hard water changes product quality. Fixing the flow meter signal restores automatic regeneration and protects downstream equipment. But the real cost is not the flow meter. The real cost is scaled boiler tubes or rejected product.
FAQ
How do I know if my Fleck flow meter is sending a signal? Set a DC multimeter to frequency or voltage mode. Spin the paddle wheel manually. A working meter shows pulses between 0 and 5 VDC or a frequency change.
Can I use any pulse flow meter with a Fleck controller? Not always. Check the controller input type and K factor. Hall effect pulse output and reed switch pulse output do not always wire the same. Match the pulse per liter or gallon setting.
What size flow meter do I need for a residential water softener? Most residential softeners use DN15 or DN20 connections. Check the pipe size at the softener inlet. Order a flow meter with the same thread or flanged connection and the correct pulse output.
Why does my Fleck flow meter show flow but the softener still skips regeneration? The K factor may be wrong. The controller may see pulses but calculate the wrong volume. Or the master settings may be set to day timer mode instead of meter immediate mode. Check the program.
What is the best replacement flow meter for a Fleck softener with dirty well water? Use an electromagnetic flow meter with no moving parts. A DN15 to DN50 Silver Instruments SFE-M with pulse output and 4-20 mA handles sediment, iron, and brine better than a paddle wheel meter.
Contact Silver Automation Instruments
Send us your pressure in bar, temperature in Celsius, pipe size DN, and flow range in m3/h. Also include the pulse type, controller input voltage, and connection size. We will quote a replacement flow meter for your Fleck water softener within 24 hours.
