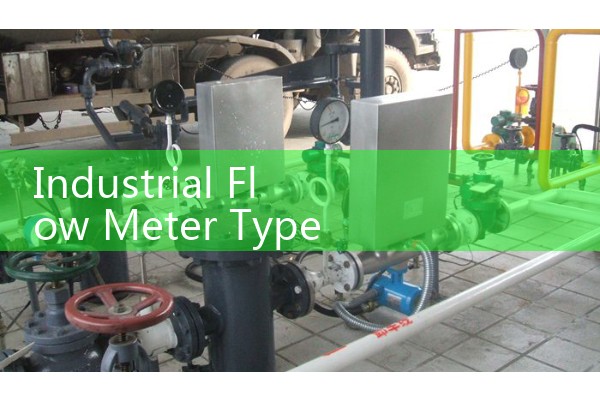

Industrial Flow Meter Types Explained: Working Principles & Comparison Chart
Quick Answer
There is no single best flow meter. Selection depends on fluid conductivity, viscosity, pipe size, and whether you need mass or volume. Electromagnetic flow meters dominate water and wastewater. Coriolis meters deliver direct mass flow for custody transfer of fuels and chemicals. Send your pipe size (DN), flow range, and fluid data to Silver Instruments for a rapid recommendation.
Coriolis Mass Flow Meters
Coriolis meters measure mass flow directly by detecting the phase shift of vibrating tubes. As fluid passes through, Coriolis forces cause a twist proportional to mass flow. Silver Instruments supplies Coriolis meters with accuracy up to plus or minus 0.1 percent of rate. They handle viscosity from 0.5 to over 1000 cP. Line sizes go from DN3 to DN150. Outputs include 4-20 mA HART, pulse, and RS485 Modbus. These meters work in custody transfer of crude oil, LNG bunkering, and chemical injection. A chemical plant in Australia replaced turbine meters with our CFM series Coriolis meter to eliminate moving parts and cut maintenance. The meter reads kg/h directly, so temperature and pressure compensation are not needed. For high-viscosity fluids such as heavy fuel oil, Silver Instruments uses thick-walled tubes and high driver gain.
Electromagnetic Flow Meters
Electromagnetic flow meters, often called magmeters, work only with conductive liquids. The minimum conductivity is usually 5 microS/cm. A magnetic field is generated across the flow tube. Conductive fluid moving through induces a voltage proportional to velocity. Our MFM series magmeters use liners of PTFE, rubber, or polyurethane to handle chemicals, slurry, and seawater. Sizes range from DN6 to DN2000. Accuracy reaches plus or minus 0.2 percent of rate. They have no moving parts and offer zero pressure drop. In practice, engineers choose them for raw wastewater, sludge, acids, and caustic solutions. Because they need a full pipe, we recommend installation in a vertical pipe or a low point to keep pipe fill. We supplied 12 units of DN300 electromagnetic flow meters to a desalination plant in Saudi Arabia for brine and seawater lines. ATEX Zone 1 versions are available for hazardous locations. For liners, PTFE handles aggressive acids, while natural rubber works well for slurry at ambient temperatures.
Ultrasonic Flow Meters
Ultrasonic flow meters use transit-time or Doppler technology. Transit-time meters send acoustic pulses between transducers. The difference in upstream and downstream travel time gives flow velocity. Doppler meters rely on reflected signals from particles or bubbles. Silver Instruments offers clamp-on ultrasonic meters for temporary surveys and inline wetted-transducer meters for permanent monitoring. Pipe sizes span DN15 to DN3000. Typical accuracy is plus or minus 1 percent of reading for transit-time models. These meters are widely used for cooling water, district heating water, and irrigation flow. They do not contact the fluid, which matters for ultrapure water in semiconductor plants. However, transit-time meters need clean liquids without excessive solids or gas bubbles. A food-grade factory in Vietnam selected our SIUS inline ultrasonic meter to measure chocolate syrup without pressure loss. Clamp-on versions fit over existing pipes so there is no process shutdown. For custody transfer of water, we provide MID-certified ultrasonic meters.
Vortex Flow Meters
Vortex flow meters measure liquids, gases, and steam. They detect vortices shed from a bluff body. The vortex frequency is proportional to flow velocity. Silver Instruments VFM vortex meters cover pipe sizes from DN15 to DN300. Accuracy is around plus or minus 0.75 percent of reading for liquids and plus or minus 1 percent for gas. They handle temperatures up to 350 degrees Celsius with integrated PT100 sensors for steam mass flow calculations. These meters need a minimum Reynolds number of 10,000 and straight pipe upstream of 15D to 30D. They are not ideal for high-viscosity fluids or very low flows. A steam plant in Guatemala installed our VFM vortex meters with built-in pressure sensors to output mass flow of saturated steam in kg per hour. This removed the need for a separate flow computer. The sensor has no moving parts and withstands high temperature and vibration. For compressed air systems, vortex meters deliver direct mass output when paired with pressure and temperature compensation.
Oval Gear Flow Meters
Oval gear meters are positive displacement devices. Two oval-shaped rotors rotate inside a housing, trapping a precise volume of fluid per revolution. They suit clean, viscous fluids like diesel, lube oil, and resins. Silver Instruments OG series handles viscosities from 1 to 100,000 cP. Sizes range from DN6 to DN200. Accuracy is very high, up to plus or
Thermal Mass Flow Meters
Thermal mass flow meters measure gas mass flow based on heat transfer. Two RTD sensors are inserted into the gas stream. One sensor measures gas temperature; the other is heated. The cooling effect relates to mass flow. Our thermal mass flow meters are used for compressed air, biogas, natural gas, and stack gas monitoring. They cover pipe sizes from DN15 to DN600 and larger with insertion probes. Accuracy is plus or minus 1 percent of full scale plus plus or minus 0.5 percent of reading. These meters are sensitive to moisture and changes in gas composition. In practice, we calibrate each instrument for the specific gas mixture. A landfill site in Nigeria uses our insertion thermal mass flow meter to monitor biogas flow to a generator with Modbus output. Because they measure mass flow, no temperature and pressure compensation is needed for most applications. For compressed air audits, we recommend the hot-tap insertion model to install under pressure.
Flow Meter Comparison Chart
The table below compares key specifications. Actual accuracy and range depend on process conditions and pipe size.
| Type | Principle | Typical Accuracy | Pipe Size (DN) | Fluid Needs | Common Industries | Silver Model Series |
|---|---|---|---|---|---|---|
| Coriolis | Mass via tube vibration | plus or minus 0.1% rate | 3 to 150 | Liquids, gases, any viscosity | Oil and gas, chemical, food | CFM |
| Electromagnetic | Faraday law, conductive liquid | plus or minus 0.2% rate | 6 to 2000 | Conductivity at least 5 microS/cm | Water, wastewater, pulp | MFM |
| Ultrasonic | Transit-time / Doppler | plus or minus 1% reading | 15 to 3000 | Clean liquid (transit-time) | Water, HVAC, food | SIUS |
| Vortex | Vortex shedding | plus or minus 0.75% liquid | 15 to 300 | Liquids, gas, steam, Re over 10k | Steam, compressed air, chemical | VFM |
| Oval Gear | Positive displacement | plus or minus 0.1% rate | 6 to 200 | Clean liquids, high viscosity | Fuel oil, hydraulics, paints | OG |
| Thermal Mass | Heat transfer (gas) | plus or minus 1% FS + 0.5% rdg | 15 to 600 (inline) | Gas, known composition | Biogas, CA, natural gas | TMF |
Frequently Asked Questions
Which flow meter is best for conductive liquids like water or acid?
Electromagnetic flow meters are the first choice. They need a minimum conductivity of 5 microS per cm. Silver Instruments MFM magmeters come with PTFE liners for acids and rubber liners for water slurry.
Can ultrasonic flow meters measure gas flow?
Yes, but you need a dedicated gas ultrasonic flow meter. Liquid clamp-on meters will not work on gas. We supply inline ultrasonic gas meters for flare gas and natural gas.
What flow meter is recommended for diesel fuel custody transfer?
Oval gear meters and Coriolis meters are common. Oval gear meters provide high accuracy at lower cost for clean diesel. For multiproduct custody transfer, Coriolis mass meters give direct mass and density information.
Do vortex flow meters require straight pipe runs?
Yes. Vortex meters typically need 15 to 30 diameters of straight pipe upstream and 5 to 10 downstream. We can provide flow conditioners if space is limited.
How to select a seawater flow meter for a desalination plant?
Electromagnetic flow meters with rubber or PTFE liners and titanium electrodes work well. Silver Instruments supplied DN300 magmeters to a desalination plant in Saudi Arabia. Clamp-on ultrasonic meters are also an option for retrofit without pipe cutting.
