UCO Biodiesel Flow Meter Viscosity Correction Techniques
Quick Answer
For used cooking oil (UCO) biodiesel applications, viscosity correction is critical for volumetric flow meters like oval gear or turbine types. A 10°C change in UCO temperature can shift viscosity by 15 to 20 cP, causing a 2 to 5% measurement error if left uncorrected. Silver Instruments recommends either applying a multi-point K-factor curve on our oval gear flow meters or switching to a Coriolis mass flow meter that reads mass directly, eliminating viscosity compensation entirely.
Why UCO Biodiesel Viscosity Changes So Much in Real Plants
Used cooking oil is not a clean, single-component fluid. It comes from restaurants and food factories in Southeast Asia, the Middle East, and Africa with varying free fatty acid content, water residue, and solid impurities. After filtration and esterification, its viscosity still swings between 30 and 60 cP at 40°C. We have seen this on customer sites many times. A biodiesel plant in Thailand measured 38 cP in the morning and 51 cP by noon simply because the feed tank warmed up under direct sunlight. Most engineers skip this part. They assume the oil temperature is stable, but uninsulated pipes in tropical climates introduce a 10 to 15°C daily swing. For volumetric flow meters, every drop in viscosity increases internal slippage and changes the K-factor by 1 to 3% per 10 cP shift. Repeatability drops and custody transfer disputes start.
Oval Gear Flow Meters and the K-Factor Correction Problem
An oval gear flow meter is often the first choice for UCO transfer because it handles viscous fluids, costs less than a Coriolis meter, and does not need straight pipe runs. Here is the thing. The factory calibration for an oval gear meter is normally done at a single viscosity, say 40 cP for a DN25 meter. When your actual process runs at 50 cP in the morning and 35 cP after preheating, the meter under-reads at higher viscosity and over-reads at lower viscosity. Silver Automation Instruments supplies oval gear flow meters with 316L rotors and PTFE seals, and we offer a density/viscosity correction table that contains up to 12 data points of K-factor versus cP. A technician can program this into a local display or a PLC via 4-20 mA HART. Without this table, a DN15 meter measuring 200 L/h of UCO can show a 6 L/h error just because the oil temperature drifted from 45°C to 50°C. That adds up to 144 liters per day of unaccounted fluid.
Coriolis Mass Flow Meters: The No-Correction Alternative
Coriolis mass flow meters measure mass directly, not volume. They do not rely on mechanical clearances, so viscosity changes have negligible effect on accuracy. A CMF-series Coriolis meter from Silver Instruments maintains ±0.1 to 0.15% of rate regardless of whether the UCO is at 20 cP or 100 cP. We have supplied these for biodiesel blending systems in Latin America where UCO, methanol, and catalyst are mixed. The Coriolis meter reads mass flow and density simultaneously, which gives the operator real-time density trending. If the density shifts from 0.89 to 0.91 kg/L, the team knows the oil quality or temperature changed. The tubing is 316L, full-bore with no moving parts, suitable for ATEX Zone 1 installations if needed. The downside is price, so we often see customers combining an oval gear meter on the raw UCO intake line with a Coriolis meter at the final product blending stage.
Practical Tip: Temperature Control and Field Calibration
Even with a corrected oval gear meter, temperature control makes a huge difference. Install a PT100 temperature sensor just upstream of the flow meter and set a local PID loop to maintain ±1°C through a heat exchanger. We have seen a 3°C stabilization reduce volume measurement errors from 2.2% to 0.4% in a Philippine biodiesel plant. If you cannot control temperature tightly, ask for a multi-point viscosity calibration at the Silver Instruments workshop before shipment. Send us your expected cP range, operating tempera

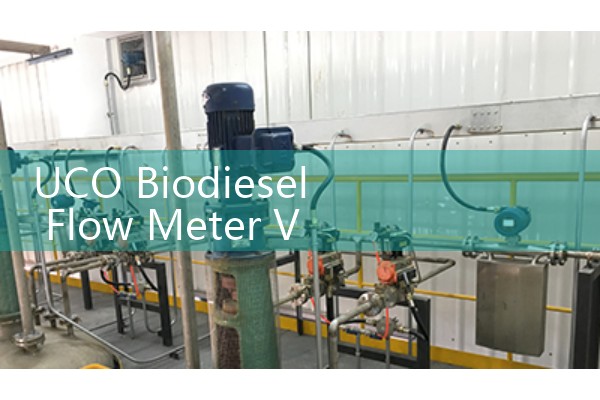

_600x400.jpg)
Customer Example from a Biodiesel Plant in Malaysia
Last year a customer in Johor, Malaysia, approached us with a metering dispute between their UCO supplier and their process feed reading. They used a competitor’s DN40 oval gear meter without any viscosity correction. The oil arrived at 55°C but cooled to 38°C inside an uninsulated 50-meter pipeline before the meter. The error was 4.1% when verified against a weighbridge. Silver Instruments supplied a DN40 Coriolis meter for the custody transfer point and a DN25 oval gear meter with a 10-point correction profile for the day tank inlet. The combined system cost less than a single high-end Coriolis installation on both lines. The mass balance error dropped to 0.3%. The plant manager said the ROI was under four months because they stopped paying for phantom volume.
How to Request a Custom Viscosity Calibration from Silver Instruments
Every UCO stream is different. The simplest next step is to email us your operating data: fluid type (UCO, UCOME, glycerin), viscosity in cP at two known temperatures, flow range in kg/h or L/min, pipe size (DN), pressure in bar, and temperature in °C. We will recommend a flow meter model and include a viscosity calibration service if needed. For standard oval gear meters from DN10 to DN80, a multi-point correction adds 3 to 5 working days to delivery. Coriolis meters are available from DN3 to DN150 with no viscosity correction required. Ask for a quotation with viscosity test report, ISO 9001 calibration certificate, and ATEX certificate if the area is classified.
Frequently Asked Questions
Can I use a turbine flow meter for UCO biodiesel? Turbine meters struggle when viscosity exceeds 15 to 20 cP. UCO is often 30 cP and higher, causing the linear range to shrink and repeatability to degrade. Avoid turbine meters for UCO unless the oil is heated to keep viscosity below 10 cP, which is rare in practice.
Does a vortex flow meter need viscosity correction? Vortex meters measure volumetric flow from the frequency of vortices shed by a bluff body. Viscosity above 30 cP damps vortex formation and reduces the meter’s lower flow range. Silver Instruments vortex flow meters have a minimum Reynolds number specification of 20,000 for liquids. If your UCO cannot meet that number, the output will become non-linear.
What is the price difference between an oval gear meter with viscosity correction and a small Coriolis meter? A DN15 oval gear meter with a multi-point correction certificate costs around 40 to 50% less than a DN15 Coriolis mass flow meter. For DN80 and above, the gap narrows. Many biodiesel operators in Africa and Southeast Asia choose the corrected oval gear option for non-custody lines.
How often should I recalibrate the viscosity correction profile? We advise customers to check the correction by comparing the meter reading against a calibrated vessel or weigh scale every six months. If the UCO source changes or the plant adds a new pre-treatment step, send the meter back for a re-calibration. Silver Instruments offers a recalibration service with a 10-day turnaround.
Do I need viscosity correction for a Coriolis meter? No. A Coriolis meter measures mass flow directly. Viscosity variations from 1 to 1000 cP do not affect the meter accuracy as long as the sensor is properly sized to handle the pressure drop. The meter also outputs density and temperature, which are useful for quality monitoring in biodiesel production.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range to [email protected] and we will provide a technical proposal within 24 hours.
